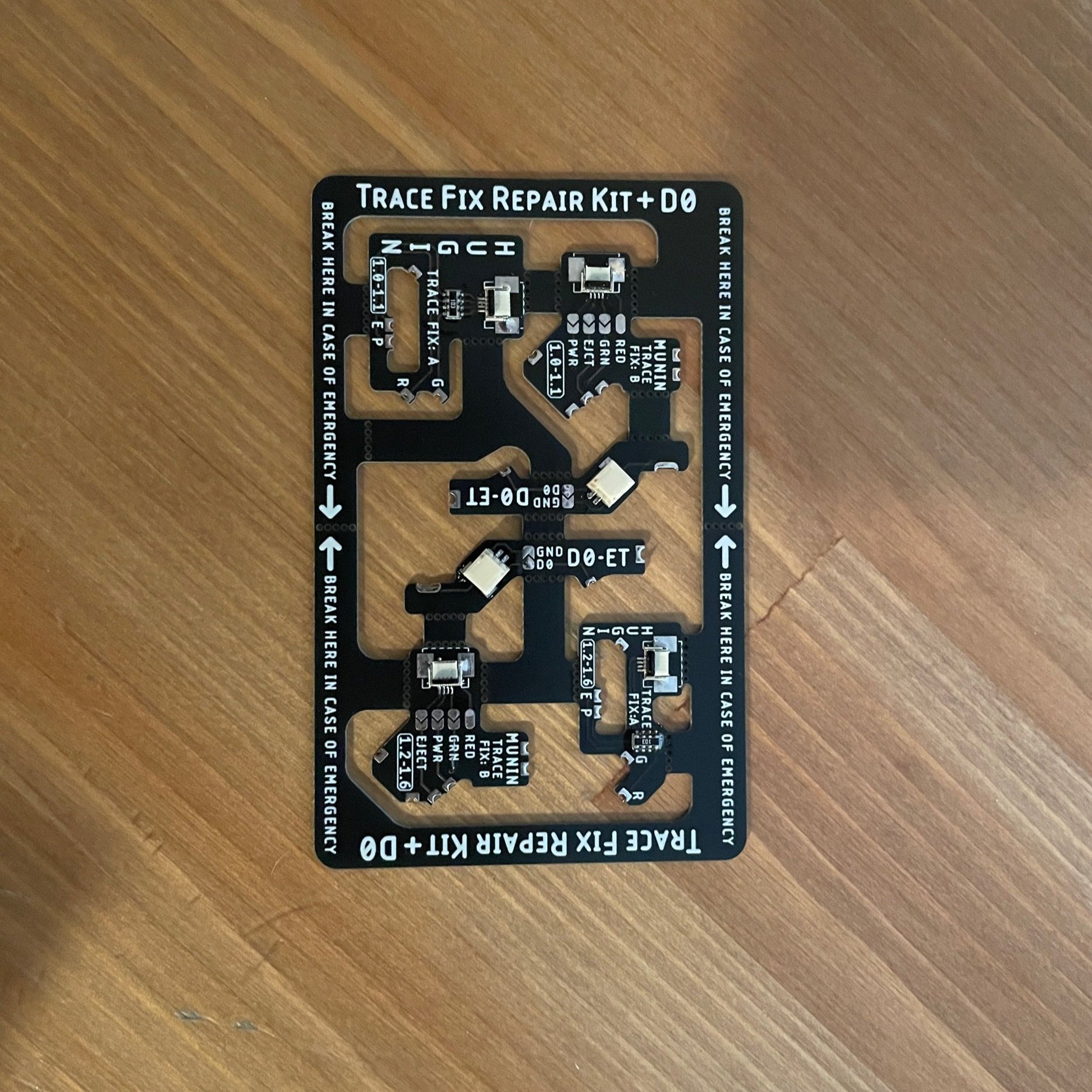

Trace Fix Repair Card Kit

Compatible across all XBOX’s

Each kit includes the following:

1x Trace Fix Repair Kit (contains 1× 1.0-1.1 boards, 1× 1.2-1.6 boards, 2x D0-ET adapters)

2x FFC cables

Installation instructions:

1. Clean and prep all solder points

2. Install the Munin board on the underside of the power connector on your XBOX. Ensure connectivity to each point with a multimeter.

3. Install the Munin board under the IDE connector, pins on the top of the Munin board should anchor to the bottom of the IDE connector, and the other anchor point will be a large ground pad. Ensure all points are soldered and check connectivity with a multimeter.

4. Install and route your flex cable, ensuring there is EXACTLY one fold, and the blue tab should be facing up. Make sure the cable doesn’t have a hard crease in the fold. Test with a multimeter to ensure connectivity.

5. On the Munin board, add solder to the required jumpers for the trace you are repairing. ONLY jumper the traces you NEED to repair.

This kit was designed by Harcroft. Please be sure to support creators and their work :)
